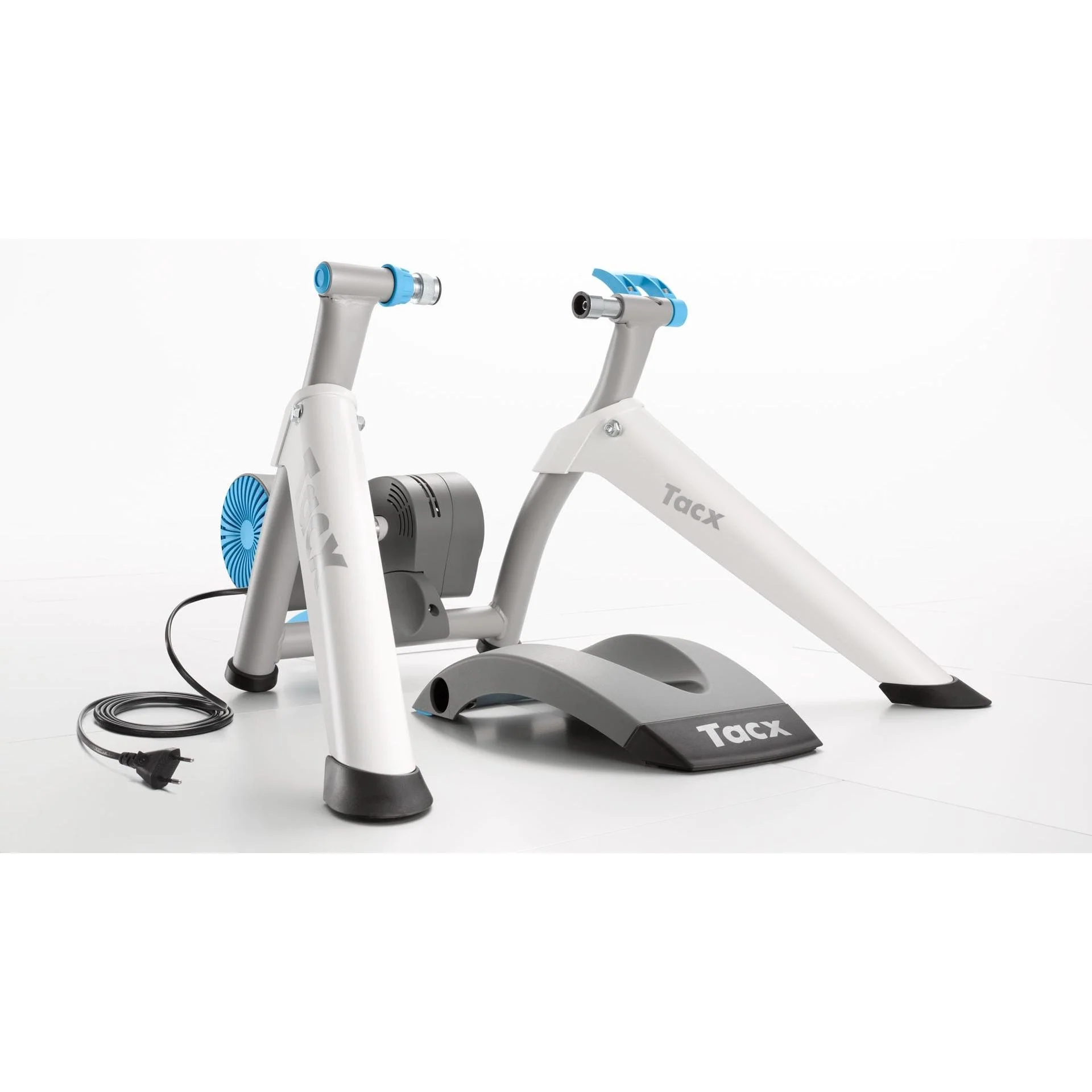

Tacx Vortex Smart Trainer
Compatible software
Tacx Smart trainers use the Bluetooth Smart and ANT+ FE-C protocol for communication which allows them to be controlled by third-party software. The software receives the speed, cadence and power from the trainer and controls the brake. Click on more information for an explanation of the compatibility and functions of each software package.
 |
 |
 |
 |
 |
 |
 |
 |
Features & specifications
| FEATURES | |
|---|---|
| Type of trainer | Interactive Smart trainer with electric brake |
| Magnets | 8 Permanent ferrite magnets & 8 electromagnets |
| Transmission | Roller, 30 mm |
| Electrical requirements | 110-240 Volt |
| Power indicator | None |
| Connection indicator (ANT/BT) | None |
| Firmware upgradable | Yes |
| Suitable bikes | Race, Tri & MTB , if necessary with axle skewer , 29? wheel with Tacx trainer tyre |
| Supplied with | Front wheel support , Quick release for road bikes and mountain bikes (5mm) |
| SPECIFICATIONS | |
| Max. power (40 km/h) | 950 Watt |
| Max. slope | 7% |
| Simulation of descent | No |
| Max. torque | 16.3Nm |
| Max. brake force | 48N |
| Flywheel | Actual of 1.65kg |
| Flywheel effect | 11.8kg |
| Calibration | Spin down |
| Footprint (lxw) | 675×650mm (26.6×25.6in) |
| Height | 410mm (16.1in) |
| Dimensions when folded | 565×410×245mm (22.2×16.1×9.65in) |
| Weight | 9.08kg (20lbs) |
| Article number | T2180 |
| DATA OUTPUT AND CONTROL | |
| Wireless communication | ANT+ FE-C , Bluetooth Smart open |
| Control by | Smartphone, tablet, ANT+ FE-C bike computers and stand-alone Connect to computer via ANT+ antenna |
| Output | Speed, cadence and power |
| Read out on | Smartphone, tablet, bike computer, sports watch, computer with ANT+ antenna |
| Accuracy | <10% |
